3rd Generation Intel Corei7 Processor-Based 3U VPX-REDI Module from Extreme Engineering Solutions (X-ES)

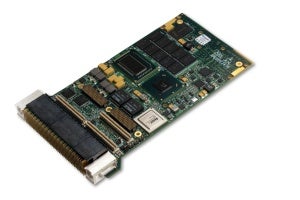

The XPedite7470 is a high-performance, low-power, 3U VPX-REDI, single board computer based on the 3rd Generation Intel® Core™i7 processor and Intel QM67 chipset.

With two PCI Express Fat Pipe P1 interconnects and two Gigabit Ethernet ports, the XPedite7470 is ideal for the high-bandwidth and processing-intensive demands of today’s military and avionics applications.

Floating-point-intensive applications such as radar, image processing, and signals intelligence will benefit from the performance boost provided by the Intel® Advanced Vector Extensions (Intel® AVX) incorporated into the second and third generation Intel Core™i7 processor.

The XPedite7470 accommodates up to 8GB of DDR3 ECC SDRAM on two channels to support memory-intensive applications.

It also hosts numerous I/O ports including Gigabit Ethernet, USB 2.0, SATA, graphics, and RS-232/422/485 through the backplane connectors. The board can be used in either the system slot or peripheral slot of a VPX backplane.

Wind River VxWorks, QNX Neutrino, Green Hills INTEGRITY, and Linux Board Support Packages (BSPs) are available, as well as Microsoft Windows drivers.
