Griffin Missile System

Griffin is a combat-proven, multi-platform, precision-guided missile designed and manufactured by the Raytheon Company.
The Griffin missile is manufactured by Raytheon. Photo: courtesy of the US Department of Defense.
The US Air Force's AC-130J Ghostrider can be integrated with Griffin missiles. US Air Force photo/Sara Vidoni.

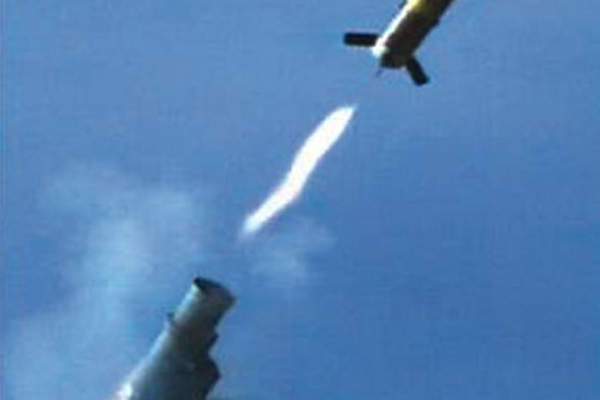

The Griffin missile launcher for small, fast-moving craft. US Navy photo by Greg Vojtko.

Griffin Missile System

Griffin is a combat-proven, multi-platform, precision-guided missile designed and manufactured by the Raytheon Company. The missile is in service with the US Air Force (USAF) and the US Navy (USN).

Production of the Griffin missile began in 2008. The missile system can engage both static and fast-moving targets and offers reliable operational effectiveness to the warfighters against a variety of threats in counter-insurgency and irregular warfare operations.

The multi-service missile is offered in four variants: Griffin A aft-eject, Griffin B forward-firing, Griffin C-ER (Extended Range) and Griffin C with dual-mode seeker and waypoint navigation.

"The tactical Griffin missile features a small, lightweight design incorporating pop-out wings. It enables quick integration with land, sea and air platforms."

The Griffin A is designed for integration onto the C-130 aircraft. The Griffin B can be launched from lightweight, rotary-wing scout platforms, light-attack fixed-wing aircraft, light infantry and other ground assets. It can also be integrated onto sea-based platforms to provide improved targeting performance in maritime environments.

The Griffin missile can also be integrated onto UAV platforms such as MQ-1 Predator and MQ-9 Reaper.

Orders and deliveries of Griffin missile

Raytheon delivered the 2,000th Griffin missile in Griffin Block III configuration to the US Special Operations Command (SOCOM) in February 2014.

In November 2014, Raytheon was awarded an $85.5m indefinite delivery indefinite quantity (IDIQ) contract by the USAF to deliver Griffin A and B Block II / III missiles and support services.

The Griffin missile is integrated on to the USAF’s AC-130W Stinger II gunship, the US Marine Corps’ (USMC) KC-130J Harvest Hawk aircraft and US Navy’s Cyclone-class patrol coastal platforms.

Griffin missile’s design and features

The tactical Griffin missile features a small, lightweight design incorporating pop-out wings. It enables quick integration with land, sea and air platforms.

The missile has a length of 43in and a diameter of 5.5in. It weighs 14.96kg and can carry a 5.89kg warhead, which provides high lethality against various targets while reducing collateral damage.

The front edge of the missile is equipped with an advanced semi-active laser guidance seeker, allowing the missile to engage moving targets with high precision and pin-point accuracy. The missile can also be guided with an advanced global positioning system (GPS)-aided inertial guidance system. The front section also includes a fuse, which allows the missile to strike the target in height-of-burst, delayed fusing and point-detonation modes.

Propulsion

The Griffin missile is powered by a solid-propellant rocket motor developed by Aerojet Rocketdyne. The motor offers high manoeuvrability. A control actuator system (CAS) installed in the rear section controls the missile’s movement.

Griffin missile demonstrations and tests

In September 2011, Raytheon unveiled plans to integrate the Griffin missile on to the Hawker AT-6 light attack aircraft.

In February 2012, the US Army fired a Griffin B missile against a static target located at more than 4km away during a test conducted to protect forward operating bases and small combat outstations.



The AGM-88E AARGM is a medium-range air-to-ground missile developed by Alliant Techsystems (ATK).


The USN test-fired a Griffin B missile from a Rolling Airframe Missile (RAM) launcher against a static target in the fourth quarter of 2011 and conducted a live-fire demonstration of three Griffin B missiles against small, fast-moving boats in the first quarter of 2012. Each missile successfully engaged a speedboat located approximately 2km away from the launch location.

Raytheon demonstrated the new variant of Griffin missile, the Griffin Block III, against different static and moving targets in February 2014. The missile features a new seeker and a multi-effects warhead system.

Raytheon and the USN demonstrated maritime capabilities of the MK-60 Patrol Coastal Griffin Missile System in September 2013. Initial operational capability of the missile system was achieved in March 2014.

In July 2014, Raytheon conducted a guided flight test of SeaGriffin (also known as Griffin C), which is an enhanced version of Griffin B Block II missile. The company demonstrated the in-flight re-targeting capability of the Griffin C in October 2014.

The Global Missiles & Missile Defence Systems Market 2011-2021

This project forms part of our recent analysis and forecasts of the global Missiles & Missile Defence Systems market available from our business information platform Strategic Defence Intelligence. For more information click here or contact us: EMEA: +44 20 7936 6783; Americas: +1 415 439 4914; Asia Pacific: +61 2 9947 9709 or via email.
