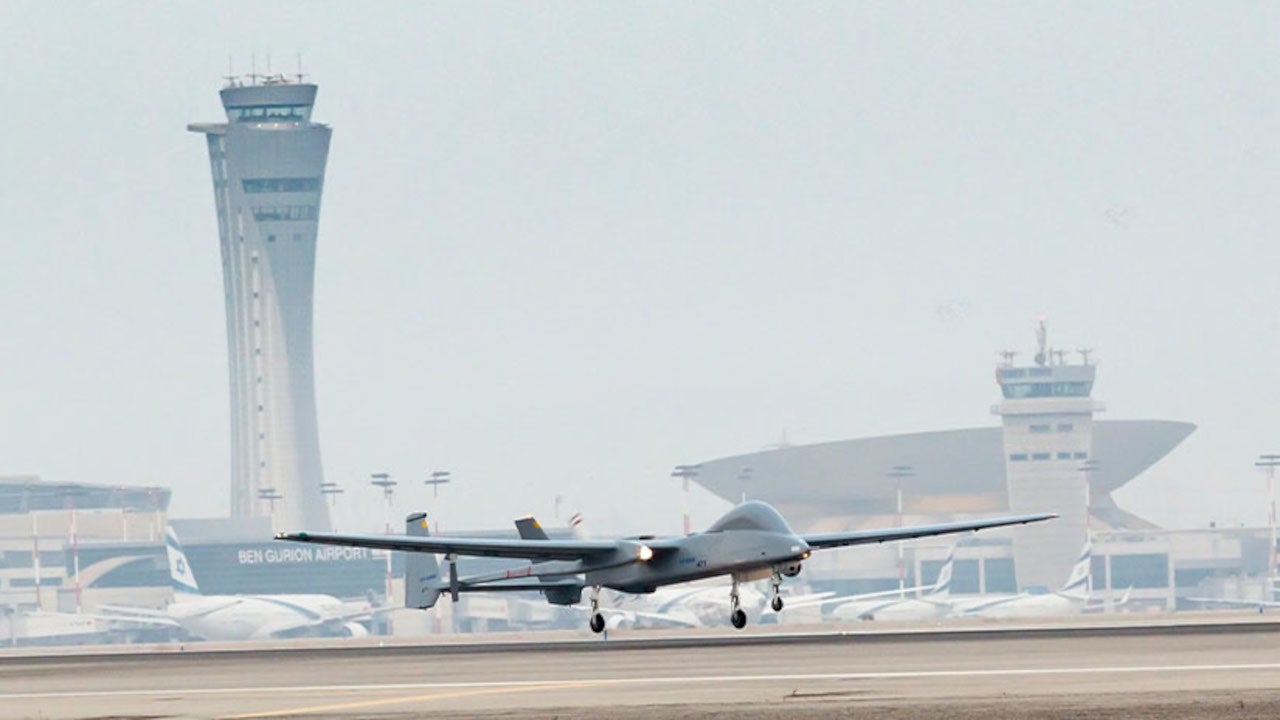

Heron TP (Eitan) MALE UAV

Heron TP (Eitan) MALE (medium-altitude, long-endurance) unmanned aerial vehicle (UAV) is an advanced variant of the Heron 1 UAV developed by Israel Aerospace Industries (IAI) to meet multiple mission needs of the armed forces.
Heron TP UAV is manufactured by Israel Aerospace Industries (IAI) to meet the needs of the armed forces.
The unmanned aerial vehicle can fly at an altitude of 45,000ft.
The UAV is powered by a 1,200hp turboprop engine.

Heron TP (Eitan) MALE (medium-altitude, long-endurance) unmanned aerial vehicle (UAV) is an advanced variant of the Heron 1 UAV developed by Israel Aerospace Industries (IAI) to meet multiple mission needs of the armed forces.

The Eitan MALE UAV’s mission capabilities include surveillance, reconnaissance, battle damage assessment, target acquisition, aerial refuelling, intelligence gathering, and missile defence.

A full-scale prototype of the Heron TP was displayed during an event that took place in Berlin ExpoCenter Airport in June 2016. It was also showcased at the Avalon International Airshow held in February 2017.

Heron TP unmanned air system orders and deliveries

IAI’s MALAT Division unveiled the Heron TP unmanned aerial vehicle during the Paris Air Show held in June 2007.

In June 2008, IAI and Rheinmetall Defence Electronics (RDE) entered a co-operation agreement to offer Heron TP for the SAATEG intermediate solution of the German Armed Forces.

A number of Heron TP drones were inducted into the White Eagle Squadron of the Israeli Air Force (IAF) in February 2010. One of them was crashed during a test flight in January 2012.

The Indian Government approved the purchase of ten armed Heron TP UAVs for the Indian Air Force in September 2015.IAI signed a $600m agreement with Airbus for leasing Heron TP UAV to Germany’s Federal Ministry of Defence, in June 2018. The contract also inlcudes operational support and maintenance. The first successful flight of the German UAV was completed in July 2020.

Heron TP MALE UAV design and features

The 14m-long, Heron TP MALE unmanned aircraft system (UAV) features an all-composite airframe with high-wing cantilever monoplane design. The main wings, spanning 26m, have high-aspect ratio.

The UAV also features twin-boom configuration, where booms are extended from the wings to form the tail structure, consisting of two tails connected by a single tailplane. A pair of vertical tail fins is mounted at the ends of the tailplane.

The retractable landing gear is arranged in a tricycle fashion with two main units mounted under the tail booms and a nose wheel under the fuselage.

With a large internal volume, the UAV can carry various payloads weighing 1,000kg. The Heron TP design can also be adapted to a variety of missions.

The drone features triplex redundancy in all avionics for reliable and easy operation. Its safety is further increased by dual automatic take-off and landing (ATOL) system.

Eitan UAV payloads

The EO / IR / LRF electro-optical targeting system, carried under the fuselage, incorporates infra-red and daylight cameras that provide real-time vision of the battlefield under all lighting conditions. The payload pod, also comprising a laser range finder, provides surveillance, reconnaissance, targeting and distance measurements.

The Heron TP’s mission systems include maritime patrol radar (MPR), electronic support measures (ESM), electronic and communications intelligence (ELINT / COMINT), and synthetic aperture radar (SAR). It can also be installed with M-19HD multi-sensor electro-optical payload.

The real-time imagery and telemetry data collected by the payloads are transmitted to the ground control station using line-of-sight propagation and satellite communications (SATCOM).

The UAV allows for simultaneous operation of different payloads for multi-mission requirements.

Engine and performance of Heron TP

Powered by a 1,200hp Pratt & Whitney PT6A-67A turboprop engine, the Heron TP MALE UAV can fly at speeds of approximately 200kts and can reach 45,000ft above commercial traffic.

Mounted at the rear of the fuselage, the engine drives a four-blade propeller, which is arranged in pusher configuration.

The drone has a maximum take-off weight of 5,300kg and is capable of enduring for up to 36 hours in all weather conditions. It can transmit data at beyond-line-of-sight (BLOS) range using SATCOM.
