ATL3 Atlantique – Maritime Patrol Aircraft

The Atlantique ATL3 maritime patrol aircraft, successor to the Atlantique ATL1 and ATL2, incorporates an enhanced weapon

Crew
Two
Passenger Capacity
Eight
Country
France
Entry into Service
1966
Length
31.6m
Wingspan
36.3m
Height
11.2m
Empty Weight
25,000kg
Maximum Take-Off Weight
46,500kg
Maximum Internal Payload
5,500kg
Weapons Payload
3,500kg
Fuel Capacity
16,000kg
Type
Rolls-Royce Allison AE2100H engines
Number
Two
Propellers
Six-bladed composite
Maximum Speed
355kts (650km/h)
Cruise Speed
315kts (580km/h)
Maximum Range
4,200nm (7,783km) to 4,859nm (9,004km)
Service Ceiling
33,000ft (10,058m)
Maximum Endurance
18 hours
Number of Hardpoints
Four
Missiles
2× Exocet AM39 air-to-surface missiles
4× Harpoon air-to-surface missiles
Torpedoes
8× Nato torpedoes
Other
6x mines, 8x anti-submarine warfare depth charges, 12x search and rescue containers, 200x sonobuoys and 70x markers
Manufacturer
Societé Européenne de Construction de l'Avion Breguet Atlantique (SECBAT) consortium
Operators
German, Italian and Pakistani Navies
Engines
Rolls-Royce
Magnetic Anomaly Detector
Thales Avionique
Sadang Acoustic Data Processing System
Thales
Composite Propeller
Messier Dowty
Arar 13A Radar Detector
Thales

Atlantique ATL3 maritime patrol aircraft

The Atlantique ATL3 maritime patrol aircraft, successor to the Atlantique ATL1 and ATL2, incorporates an enhanced weapon system with a maximum 9,000kg payload, new technology engines, glass cockpit and sophisticated avionics and sensors.

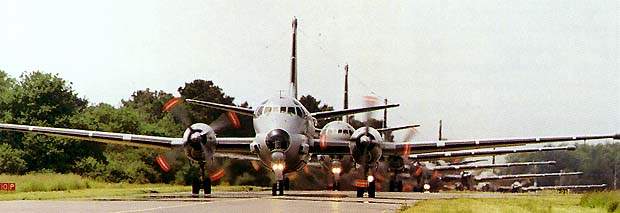

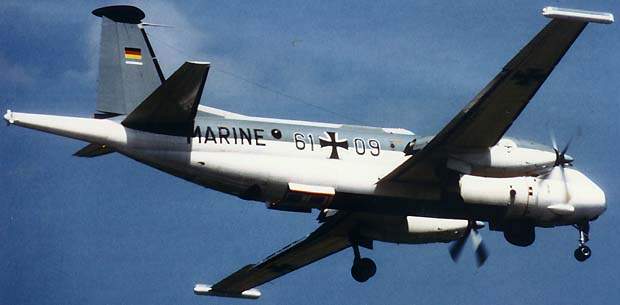

The ATL1, selected as the NATO Long Range Maritime Patrol Aircraft, entered service in 1966 and remains in service with the German, Italian and Pakistani navies. The Atlantique ATL2 has been in service with the French Navy since 1989.

The ATL3 airframe is produced by the Societé Européenne de Construction de l’Avion Breguet Atlantique (SECBAT) consortium consisting of Dassault Aviation of France, Alenia of Italy, SABCA-SONACA of Belgium and EADS (European Aeronautics Defence and Space) company, formed by DaimlerChrysler Aerospace of Germany, Aerospatiale Matra of France and CASA of Spain.

The primary mission of the Atlantique is anti-submarine and anti-surface warfare, but secondary roles include search and rescue, mine laying and detection and long range maritime surveillance.

Cockpit

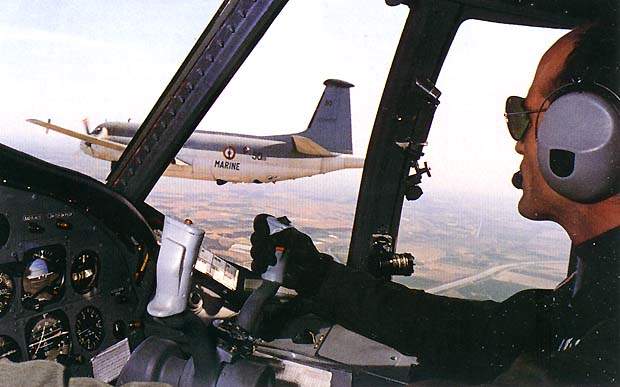

The flight deck is designed for two pilots. Six LCDs provide each pilot with the flight and systems management data independently, together with pictures from the electro-optical sensor and data from the weather radar and the tactical display.

Tactical crew stations

The aircraft normally carries eight tactical crew – the tactical co-ordinator (TACCO), the deputy TACCO, two radar and electronic support measures officers and two acoustic sensor officers.

“The aircraft normally carries eight tactical crew.”

The tactical crew has identical workstations each with two full colour, multi-purpose displays. The deputy TACCO manages the communications, navigation and electro-optical systems. The TACCO receives the inputs from all sensor operations and, using the tactical aids suite, evaluates the situation and determines the actions to be taken.

Weapons

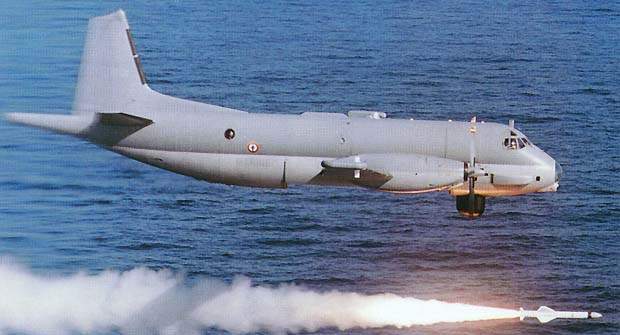

The Atlantique ATL3 has four underwing hardpoints with a total capacity of 3,500kg for carrying missiles. In addition, it has a large weapon bay with capacity to carry a maximum internal payload of 5,500kg, and can carry a range of ordnance and equipment to support deployment for out of area operations.

Various combinations of payloads can be loaded in the weapons bay with a choice of: up to eight NATO torpedoes; two Exocet AM39 air-to-surface missiles; four Harpoon air-to-surface missiles; six mines (either 250kg or 500kg; eight anti-submarine warfare depth charges; 12 search and rescue containers; 200 sonobuoys; and 70 markers.

Sensors

The Thales Iguane multi-mode radar has the sensitivity to detect periscope-sized targets. It can operate in surface search mode and weather avoidance mode simultaneously, and carries out track-while-scan. An Identification Friend or Foe system is integrated into the radar.

“The Thales Iguane multi-mode radar can detect periscope-sized targets.”

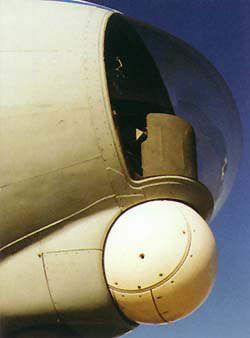

The aircraft is equipped with a forward looking infra-red (FLIR) sensor installed in a spherical turret under the nose. The FLIR carries out search, detection, identification and tracking of targets and has a detection range of up to 100 miles.

Two camera systems provide vertical and oblique photography. A Thales Avionique magnetic anomaly detector, for the detection and location of submarines, is installed in the lengthened tail section of the fuselage.

The aircraft’s two acoustic sensor operators detect, locate and track submarines using the Sadang acoustic data processing system from Thales. Sixty-four channels can be processed simultaneously.

Countermeasures

The electronic support measures system (ESM) is the Thales Arar 13A radar detector. The system automatically detects, analyses, identifies and tracks radar signals and provides high probability of single pulse intercept even in a dense electromagnetic environment. Intercepted radar signals are analyzed by comparison of signal characteristics against an ESM threat library.

Navigation and communications

The navigation system uses a ring laser gyro inertial navigation system with an integrated global positioning system and a radio navigation suite including VHF omnidirectional radio ranging with distance measuring equipment. The autopilot equipment allows operational flight down to 100ft.

The communications suite includes V/UHF and satellite communications links with NATO Tactical Data Links 11, 14 and 16.

“The Rolls-Royce Allison AE2100H engines produce 10% more power than the current generation ATL engines, but use 15% less fuel.”

Engines

The Rolls-Royce Allison AE2100H engines, equipped with six-blade composite propellers from Messier Dowty produce 10% more power than the current generation ATL engines, but use 15% less fuel.

Performance

The ATL3 can fly at a maximum speed of 650km/h, and has a cruise speed of 580km/h. The range of the aircraft varies between 7,783km and 9,004km. Its service ceiling is 10,058m, and can stay airborne for for 18 hours. It weighs approximately 25,000kg and its maximum take-off weight is 46,500kg.
