Mi-35M (Hind E) Attack Helicopters, Russia

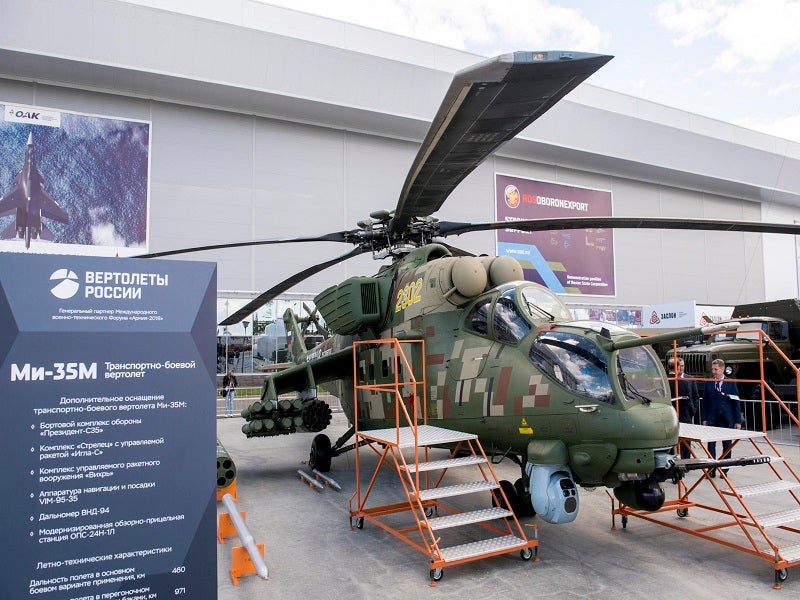

The Mi-35M is a multi-role combat helicopter manufactured by Rostvertol, a subsidiary of Russian Helicopters. It is an export variant of Mi-24 Hind attack helicopter. Primarily designed for attack and military transport missions, the helicopter delivers superior flight performance and manoeuvrability than its predecessor.
The production of Mi-35M started in 2005. The aircraft integrates modern, high-precision weaponry for destroying ground-based armoured targets and providing air support for ground missions. It can be modified as an attack, ground assault, medical evacuation (MEDEVAC) or transport platform.
The Mi-35M is one of the modern combat helicopters in the Russian Air Force inventory. It is also operated by the armed forces of Venezuela, Brazil and Azerbaijan.
Mi-35M orders and deliveries
Venezuela signed two contracts with Rosoboronexport in 2005, for a total of eight Mi-35M helicopters. The helicopters that were delivered to Venezuela were fitted with VK-2500 engines for high-altitude operations.
The Brazilian Air Force (FAB) signed a $150m contract with Rosoboronexport for 12 Mi-35M helicopters in November 2008. The helicopters are manufactured by Rostvertol at its facility in Rostov-on-Don. The first three helicopters were delivered in December 2009.
The Brazilian Air Force formally inducted three Mi-35M helicopters into service in April 2010. The helicopters in FAB service are referred to as AH-2 Sabre. A total of nine helicopters were delivered by August 2012. The final helicopter was delivered in December 2014.
Azerbaijan signed a contract with Rosoboronexport for the delivery of 24 Mi-35M helicopters in September 2010. A total of 12 helicopters were delivered by 2012. The last batch of helicopters was delivered in November 2013.
The Iraqi Ministry of Defence received the first batch of four Mi-35M helicopters in November 2013. The second batch of four was delivered in July 2014 and the third batch in October 2014.
Nigeria placed a contract for six Mi-35M combat helicopters in August 2014.
Based on the Mi-24 Hind, the Mi-35M incorporates several improvements, including shortened stub wings, a new rotor system, modern avionics, upgraded turboshaft engines and a hydraulic system. The cockpit and vital components of the helicopter are significantly armoured.
The Mi-35M has an overall length of 21.6m, wingspan of 6.5m and height of 6.5m. Its takeoff weight in ferry configuration is 12,000kg. It can carry eight troops or a payload of 2,400kg.
Cockpit and avionics of the Mi-35M
The glass cockpit of the Mi-35M accommodates two pilots in tandem configuration. The night vision goggle (NVG)-compatible cockpit integrates multi-functional displays (MFDs), redundant flight controls and state-of-the-art avionics.
The helicopter is equipped with an OPS-24N surveillance-and-sighting station, a television channel, a GPS-guided navigation system and an optional non-Russian radio station.
Hind E armament
The chin-mounted turret can be installed with the twin-barrel GSh-23V 23mm cannon with 450 to 470 rounds of ammunition. The gun can fire 3,400 to 3,600 rounds a minute. The stub wings can carry a range of weapon systems including anti-tank missiles, rocket pods/gun pods, or fuel tanks.
The helicopter can be armed with up to eight 9?114 or 9M120 Ataka-V SACLOS radio guided anti-tank missiles, up to 80 'S-8' 80mm unguided rockets and 20 'S-13' type 122mm unguided aircraft rockets.
The countermeasures suite of Mi-35M includes a radar warning receiver, a laser range finder and a location finder, chaff and flare launch system, infrared (IR) jamming system and engine-exhaust IR suppressor.
Mi-35M engines and performance
The Mi-35M helicopter is powered by two ?V?-117V?? or VK-2500 engines. Each engine develops a maximum power output of 2,200hp. The engines are designed to support high-altitude missions.
The helicopter can fly at a maximum speed of 310km/h. Its operational altitude is 5,400m. The helicopter has a normal range of 460km and can reach a maximum distance of 1,000km with full fuel load.
It can be deployed in combat missions in various geographies with high-temperature and high-altitude environments and features round-the-clock combat capabilities for conducting missions during day and night. It is also capable of operating from unprepared and poorly equipped airfields.
