EMB-312 Tucano Trainer Aircraft, Brazil




Key Data


EMB-312 Tucano

The EMB-312 Tucano is a tandem-seat, single-turboprop basic trainer developed by Embraer for the Brazilian Air Force (FAB). The aircraft replaced the Cessna T-37 in service with the FAB.

The FAB placed a contract with Embraer in December 1978 for two prototypes and two airframes of the EMB-312 for conducting fatigue tests. The first prototype completed its maiden flight in August 1980. The second and third prototypes flew in December 1980 and August 1982, respectively. EMB-312 was named Tucano in October 1981.

The Brazilian Air Force received an initial batch of four Tucano aircraft in September 1983. The aircraft were designed T-27 for training missions and AT-27 for ground attack roles. The EMB-312 Tucano is operated by the FAB from several bases in Brazil for training new pilots, as well as conducting border surveillance, light attack and anti-drug trafficking missions.

Orders and deliveries

"The Brazilian Air Force received a total of 118 T-27 and 50 AT-27 aircraft."

The Brazilian Air Force received a total of 118 T-27 and 50 AT-27 aircraft. Over 500 EMB-312 Tucano aircraft were delivered to international customers including Honduras, Egypt, Colombia, France, Iraq, Venezuela, Peru, Argentina, Angola, Paraguay and Iran.

The French Government ordered 80 EMB-312s in 1991. Deliveries for the French Air Force were completed in 1994. Tucanos for the air forces of Egypt and Iraq were manufactured in the respective nations under license from Embraer.

The Short Tucano, an uprated version of EMB-312, was selected by the Royal Air Force in March 1985. About 130 aircraft were manufactured by Shorts Brothers. The new version features a strengthened airframe and more powerful Garrett TPE331-12B engine. The RAF received the first batch of aircraft in June 1987. The Short Tucano was also delivered to the air forces of Kenya (12) and Kuwait (16).

Design features of EMB-312


Related project


.EMB-314 Super Tucano / ALX trainer and light attack aircraft

The EMB-314 Super Tucano is an enhanced version, with faster speed and higher altitude, of the EMB-312 Tucano trainer aircraft which is operational in the air forces of 17 countries.


The EMB-312 incorporates a conventional cantilever low-wing monoplane design. The airframe is of light alloy construction. The enclosed cockpit accommodates two crew on Martin-Baker ejection seats in tandem configuration. The transparent fibreglass hood on the cockpit ensures broad vision during flight. The aircraft is equipped with a retractable tricycle landing gear.

The EMB-312 has a length of 9.86m, wing span of 11.14m and a height of 3.4m. The wing area is 19.4m2. The empty weight and maximum takeoff weights of the aircraft are 1,810kg and 3,175kg respectively.

The innovative features introduced with the EMB-312 became standard in new basic training aircraft. It was the first trainer aircraft to be developed from the basis with turboprop engines delivering similar performance of a jet aircraft. The EMB-312 is also the first trainer aircraft to be equipped with ejector seats.

Avionics

The avionics suite of EMB-312 integrates basic flight instrumentation, HUD (head-up display) system and flight management systems. Cobham Commercial Systems was contracted by Embraer in June 2011 to supply an advanced flight display system for 14 EMB-312 Tucanos of the Columbian Air Force.

The new avionics suite includes large-format synthetic vision flight displays, advanced flight management systems, integrated hazard alerting system, and integrated engine displays and master caution system. The aircraft are also fitted with an automatic stall/over-speed protection, tactical radar simulator and digital autopilot system equipped with three dimensional auto-flight capability.

Armament

"The EMB-312 Tucano is powered by a Pratt & Whitney Canada PT6A-25C turboprop engine."

The EMB-312 Tucano can be converted into an armed trainer, air support or air-to-ground attack aircraft by integrating weapon systems. The two hard points under each wing can be fitted with 12.7mm gun, SBAT-70 rocket pod, and general-purpose bombs such as the Mk 81 and the Mk 82.

Engine and performance

The EMB-312 Tucano is powered by a Pratt & Whitney Canada PT6A-25C turboprop engine. The engine delivers a power of 560kW (750shp) providing a maximum speed of 457km/h and range of 2,112km. The aircraft can fly at an altitude of 9,150m. The rate of climb of the EMB-312 is 13.2m/s.


The Global Military Aircraft Market 2011-2021

This project forms part of our recent analysis and forecasts of the global military aircraft market available from our business information platform Strategic Defence Intelligence. For more information click here or contact us: EMEA: +44 20 7936 6783; Americas: +1 415 439 4914; Asia Pacific: +61 2 9947 9709 or via email.

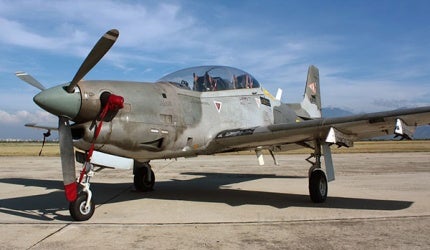

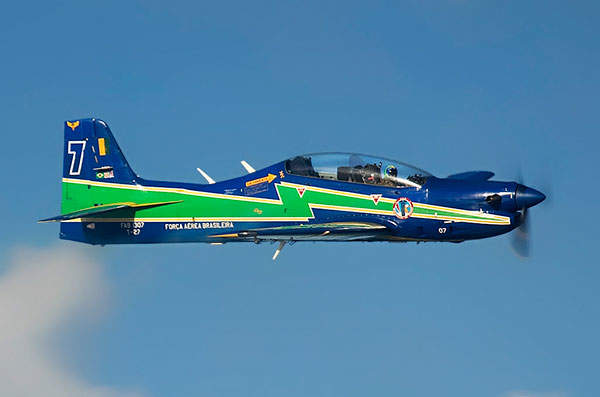

The EMB-312 Tucano is a two seat turboprop basic trainer developed by Embraer.

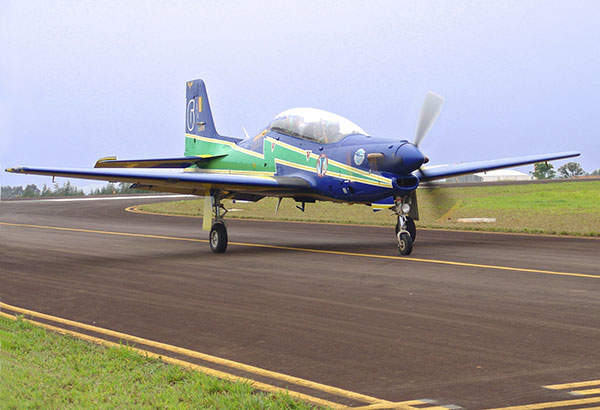

An EMB 312 Tucano of the Brazilian Air Force Smoke Squadron preparing to takeoff.

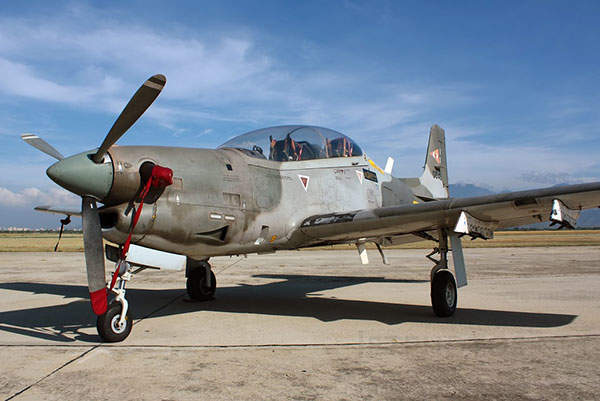

The Venezuelan Air Force EMB-312 Tucano stationed at El Libertador Air Base.

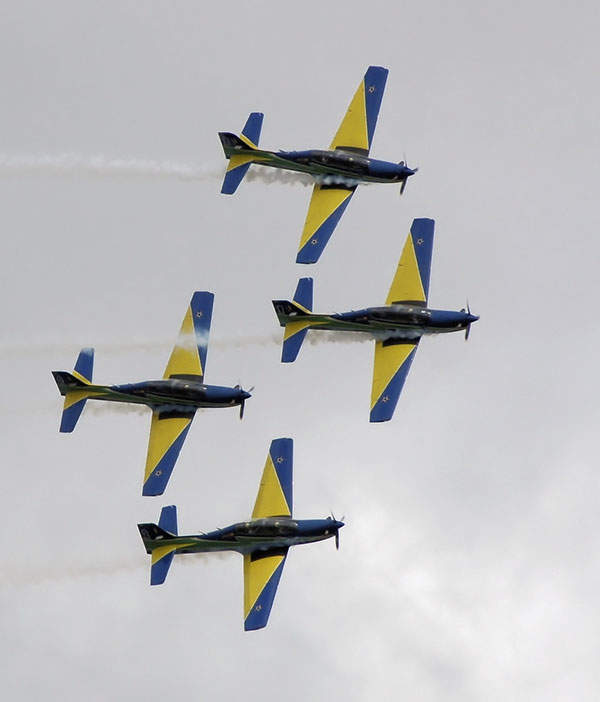

The Embraer EMB 312 Tucano aircraft of the Brazilian Air Force Smoke Squadron during practice at the Royal International Air Tattoo.
A close view of the Embraer EMB 312 Tucano's cockpit.
